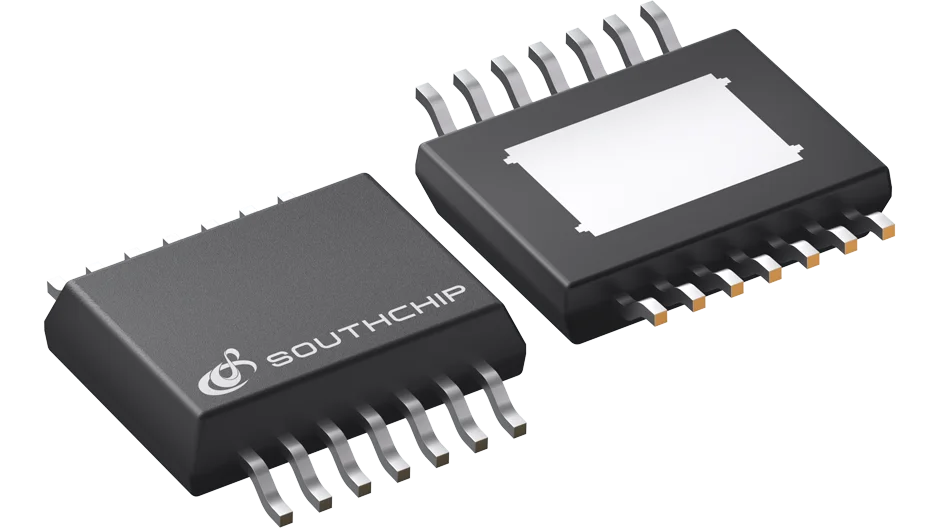

Features
• Qualified for Automotive Applications.
• AEC-Q100 Qualified with the Following Results:
o Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
o Device HBM ESD Classification Level H3A
o Device CDM ESD Classification Level C4B
• Single Channel 8mΩ Smart High-Side Switch with Full
Diagnostics.
o Version A: 16-pins, Auto-restart or Fault Latchoff
Mode, Channel Fault Diagnosis, Proportional
Load Current Sense Output
o Version B: 14-pins, Auto-restart Mode, Channel
Fault Diagnosis, Proportional Load Current
Sense Output
• Operating Junction Temperature: –40 to 150°C.
• Wide Operating Voltage from 4 to 28V with Load Dump
Withstand Voltage up to 40V .
• Ultra Low Standby Current < 500 nA.
• Input Control, 3.3 V and 5 V Logic Compatible.
• High Accuracy Current Sense:
o ±4% @ 10A
o ±5% @ 5A
o ±15% @ 0.1A
o ±25% @ 0.05A
o ±50% @ 0.01A
• Advanced Protections:
o Short to GND Protection by Internal Current Limit
o Dynamic Thermal Swing Shutdown and Absolute
Thermal Shutdown with Auto-restart
o Configurable Fault Latch-off Mode for Both TSW
and TSD Events
o Inductive Load Negative Voltage Clamp with
Optimized Slew Rate
o Loss of GND and Loss of Battery Protection
o Under Voltage Lockout (UVLO) Protection
• Diagnostics:
o Overload and Short to Ground Detection in ON
State
o Open Load and Short to Battery Detection in
OFF State
