深圳市莉诚科技有限公司

莉诚科技

Licheng Technology

氮化镓/协议快充/移动电源/PCBA方案/主芯片套料项目开发DC/DC模块

10000

2019

5000

SOUTHCHIP/上海南芯

品牌LOGO

市场价:0.00

价格:0.00
ANGSEMI/昂赛微

品牌LOGO

市场价:0.00

价格:0.00
瑞昱

品牌LOGO

市场价:0.00

价格:0.00
红宝石RUBYCON

品牌LOGO

市场价:0.00

价格:0.00
Cmsemicon/中微半导体

品牌LOGO

市场价:0.00

价格:0.00
GD/兆易创新

品牌LOGO

市场价:0.00

价格:0.00
GEEHY/极海半导体

品牌LOGO

市场价:0.00

价格:0.00
SONY/索尼

品牌LOGO

市场价:0.00

价格:0.00
infineon/英飞凌

品牌LOGO

市场价:0.00

价格:0.00
TI/德州仪器

品牌LOGO

市场价:0.00

价格:0.00
ST/意法

品牌LOGO

市场价:0.00

价格:0.00
SEMTECH/升特

品牌LOGO

市场价:0.00

价格:0.00
ADI/亚德诺

品牌LOGO

市场价:0.00

价格:0.00

无人机领域（Drone field）
汽车领域（Automotive field）
工控领域（Industrial control field）
医疗器械（Medical Equipment）
通讯设备（Industrial Communication Device）
智能家居（Smart Home）
新能源（New and renewable sources of energy）
消费电子（Consumer Electronics）

SC6022CFFR

SOUTHCHIP / 上海南芯

市场价:0.00

价格:0.00

Descriptions SC6022 is a highly integrated switching mode power management IC (PMIC) designed to drive AMOLED displays requiring ELVDD, ELVSS, AVDD, DVDD and VGL. It can support up to 1.xA panel current with high panel voltage to cover high brightness mode (HBM) applications. The device integrates five high-performance converters, Buck or Boost converter for ELVDD, inverting Buck-Boost converters for ELVSS and VGL, Boost converter for AVDD and Buck converter for DVDD. The ELVDD output has two ranges. The first range is from 2.0V to 4.0V (default 2.8V) to drive the LTPO panels. The second range is from 4.6V to 5.0V (default 4.6V) to drive LTPS panels. The ELVSS inverting Buck-Boost adopts dual-phase topology and supports up to -9V output voltage to provide continuous high-power output and cover HBM panels. The AVDD, DVDD and VGL are high-efficiency power solutions for powering display driver IC. The device is suited for lithium batteries with the best performance from 2.8V to 5.0V. It uses innovative technology enabling excellent output voltage regulation and line transient performance. The output voltage is high precision and programs through I2C. For portable device applications, size, power consumption and reliability are always the first consideration. SC6022 uses a tiny package and switches at 1.35MHz (Typ.) to balance efficiency, inductors', and capacitors' size. Besides, it also adopts synchronous rectification and power save mode to maximum efficiency. The device integrates full protections, including output short circuit protection, overload protection, thermal shutdown, and input undervoltage protection. The SC6022 adopts 2.816mm × 2.976mm WLCSP package.
SC9625CFFR

SOUTHCHIP / 上海南芯

市场价:0.00

价格:0.00

南芯SC9625SC9625是一款充电达功率50W的高度集成无线RTx芯片，单芯片集成无线充电发射和接收的功能，其整合了高效率同步全桥整流器，具备超低导通电阻RDS，能够有效将无线发射器发送的交流电能转换为直流电能，并搭载高性能可编程的低压差稳压器（LDO），可实现出色的效率和系统优化，AC-DC转换效率最高可达97%。 SC9625内置32位MCU，具有极低的待机功耗，并配备32KB MTP内存，为系统固件更新提供了极大的灵活性。作为接收器，它能够向下游充电系统提供50W（20V/2.5A）的输出功率。作为发射器，它支持高达15W的输出功率，可供其他无线接收器使用。 SC9625兼容WPC Qi（v1.3）协议，并支持专有协议，采用2.875mm x 4.035mm WLCSP-54封装目前SC9625已成功应用在小米Pad6S Pro手写笔上，在充电表现、体验为用户上带来了更好的感受，更小的封装体积和更强大的功能也有效提高了产品的便携性和易用性 SC9625是一款高度集成、功率达到50W的无线RTx芯片，待机功耗极低，其整合了充电发射和接收功能，并配备了高效率的整流器和可编程的稳压器，使其具备了出色的功率转换效率和系统优化能力。内置的32位MCU和灵活的固件更新机制为系统提供了极大的灵活性。同时该芯片采用WLCSP-54 2.875x4.035mm封装，可以轻松实现高集成的无线充电系统，有效降低产品体积。 小米是一家非常注重用户体验的公司，SC9625在小米Pad6S Pro手写笔等产品上的成功应用，验证了其在充电性能、便携性和用户体验方面表现优异。南芯科技也将致力于为客户提供高效的芯片解决方案，不断推动行业技术的进步和创新，实现更广泛的应用场景和更优越的用户体验。SC9625 是一款高度集成高效的单芯片无线电源接收器/发射器 IC (RTx)。 SC9625 集成了一个具有超低电阻的高效同步全桥整流器，可将来自无线发射器的交流电源信号转换为直流电源，并集成了一个可编程低压降 LDO，从而实现了极好的效率和系统优化。SC9625 包含业界领先的片上 32 位 MCU，具有极低的待机功耗，集成了32KB MTP为系统固件更新提供极大的灵活性。作为接收器，SC9625 可为下游充电系统提供50W(20V/2.5A)的输出功率。作为发射器，SC9625 可以支持高达15W的输出功率到其他无线接收器。SC9625兼容WPC Qi (v1.3)协议，并支持私有协议。SC9625 采用超小型2.875mm x 4.035mm WLCSP-54的封装。 功能● 电压保护● 作为接收器提供高达 50W 的功率，在 TX 模式下提供高达 15W 的功率● 集成高效同步全桥整流器● 高性能 LDO，可编程输出电压范围为 3.5V 至 20V，步进10mV● 10mA电流感应精度● 支持半桥模式启动和工作● 超低待机电流● 嵌入式片上 32 位 MCU 和 32kB MTP● 支持I2C接口和GPIOs● 97%交直流转换效率● 系统保护√ VRECT UVP/OVP保护√ AC SCP保护√ LDO OCP/SCP/OPP保护√ OTP● 采用WLCSP-54 2.875mm x 4.035mm封装应用● 智能手机 ● 平板电脑 ● 其他医疗和工业仪器
SC89601SQDLR

SOUTHCHIP / 上海南芯

市场价:0.00

价格:0.00

DESCRIPTION The SC89601S is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management, which separate the system load and charge current, also the system can power up with deep depletion battery. System can get the power from VBUS, VBAT or both. It supports 3.9-13.5V input voltage, up to 3A charging current and provide battery charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination, auto recharge and charging status indication. The SC89601S supports flexible charge current option, the user can program the current and all others charger spec by I2C. With the charger management function, the IC can be used to charge 1 cell Li-ion battery. The SC89601S supports USB OTG with up to 1.2A output with PFM/PWM mode. Meanwhile, the SC89601S supports USB BC1.2 and non-standard adapters. The SC89601S supports input current and voltage limit, input under voltage and over voltage protections, internal cycle by cycle current limit, battery short circuit protection, and output over voltage protection. It also offers charging safety timer and over temperature protection to ensure safety under different abnormal conditions. The SC89601S integrated all MOSFETs, current sensing, loop compensation and I2C interface. The SC89601S is available in QFN(24)-4*4 package. 用于单节锂离子电池的高效同步 3A 降压充电器，带 NVDC 电源路径管理功能 SC89601S 是一款 1.5MHz 高集成度开关模式降压充电器，适用于单节锂离子电池应用和 NVDC 系统电源路径管理，可分离系统负载和充电电流，还可使用深耗尽电池为系统供电。系统功率可从VBUS、VBAT或者两端共同获取。它支持 3.9-13.5V 输入电压，充电电流高达 3A，并提供电池充电管理功能，包括涓流充电、恒流充电、恒压充电、充电截止、自动复充和充电状态指示。
SC7061CFFR

SOUTHCHIP / 上海南芯

市场价:0.00

价格:0.00

DescriptionsThe SC7061 is a highly integrated, single-cell, Li-ion/Li- polymer battery charger with system power path management and I2C interface for space-limited portable applications. The SC7061 takes input power from either an AC adapter or a USB port to supply the system load and charge the battery simultaneously. The SC7061 provide the charge management functions including trickle charge, constant current charge, constant voltage charge, charge termination and auto-recharge. The power path management function ensures continuous power to the system by automatically selecting the input, battery, or both to power the system. This function features a low dropout regulator from the input to the system and a 70mΩ switch from the battery to the system. Power path management separates the charging current from the system load, which allows for proper charge termination and keeps the battery in full-charge mode. The SC7061 provides a system short-circuit protection (SCP) function by limiting the current from the input to the system and the battery to the system. This feature is especially critical for preventing the Li-ion battery from being damaged due to an excessively high current. An on-chip battery under-voltage lockout (UVLO) cuts off the path between the battery and the system if the battery voltage drops below a programmable battery UVLO threshold. This prevents the Liion battery from being over-discharged. An integrated I2C control interface allows the SC7061 to program the charging parameters, such as input current limit, input minimum voltage regulation, charging current, battery regulation voltage, safety timer, and battery UVLO. Applications Wearable Devices Fitness Accessories Smart Handheld Devices Smart Watches
SC70562BDDFR

SOUTHCHIP / 上海南芯

市场价:0.00

价格:0.00

<p class="mt-2 text-lg font-medium text-[#383838] md:text-lg lg:text-xl" style="box-sizing: border-box; border: 0px solid; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-pan-x: ; --tw-pan-y: ; --tw-pinch-zoom: ; --tw-scroll-snap-strictness: proximity; --tw-gradient-from-position: ; --tw-gradient-via-position: ; --tw-gradient-to-position: ; --tw-ordinal: ; --tw-slashed-zero: ; --tw-numeric-figure: ; --tw-numeric-spacing: ; --tw-numeric-fraction: ; --tw-ring-inset: ; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: rgba(59,130,246,.5); --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-blur: ; --tw-brightness: ; --tw-contrast: ; --tw-grayscale: ; --tw-hue-rotate: ; --tw-invert: ; --tw-saturate: ; --tw-sepia: ; --tw-drop-shadow: ; --tw-backdrop-blur: ; --tw-backdrop-brightness: ; --tw-backdrop-contrast: ; --tw-backdrop-grayscale: ; --tw-backdrop-hue-rotate: ; --tw-backdrop-invert: ; --tw-backdrop-opacity: ; --tw-backdrop-saturate: ; --tw-backdrop-sepia: ; margin: 0.5rem 0px 0px; font-size: 1.25rem; line-height: 1.75rem; --tw-text-opacity: 1; color: rgb(56, 56, 56); font-family: PuHuiTi, -apple-system, "SF Pro SC", "SF Pro Display", "SF Pro Icons", "PingFang SC", "Helvetica Neue", Helvetica, Arial, sans-serif; white-space: normal;">用于单节锂离子电池的800mA全集成线性充电器SC70562x 是一款高度集成的线性充电器，适用于单节锂离子电池应用。它支持高达 800mA 的充电电流，并提供电池充电管理功能，包括涓流充电、恒流充电、恒压充电、充电终止和充电状态指示

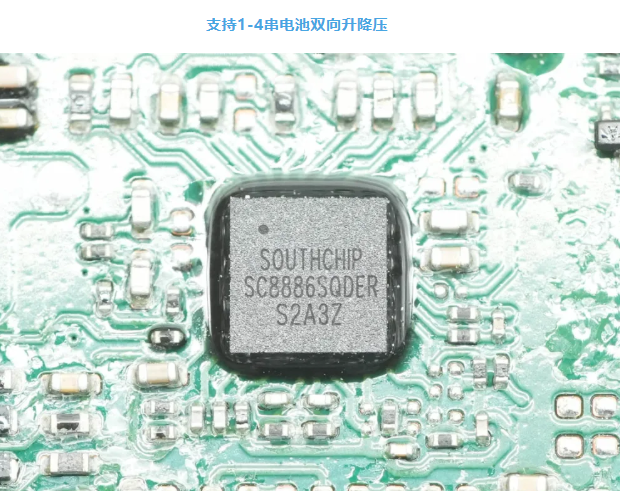

南芯科技推出SC8886S双向升降压充电控制器

2026-08-21

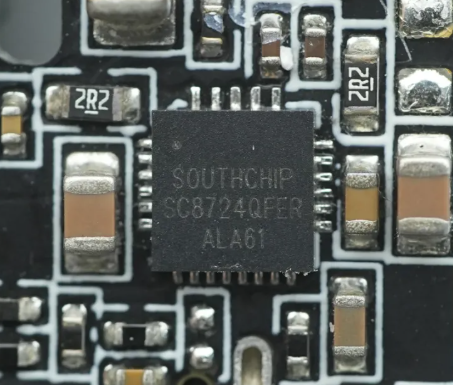

多口快充常见方案，南芯SC8724拆解案例盘点

2026-08-21

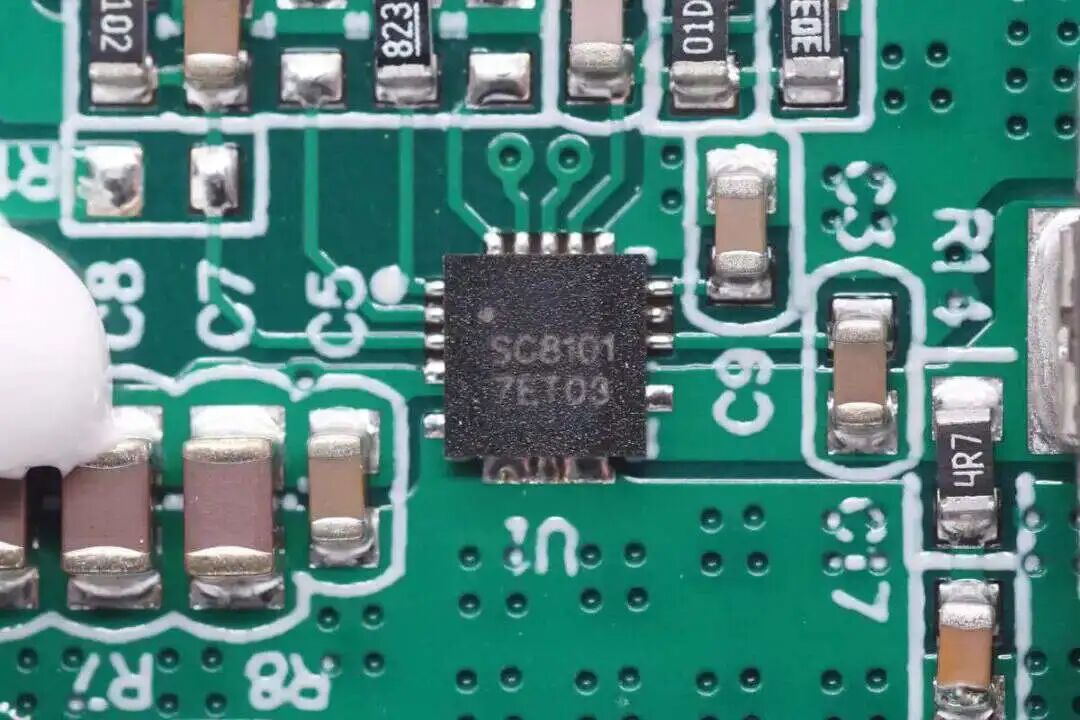

南芯科技SC8101、SC8815助力斯莫格迷你V口电池实现百瓦多口快充

2026-08-21

南芯科技推出SC8886S双向升降压充电控制器

2026-08-21
多口快充常见方案，南芯SC8724拆解案例盘点

2026-08-21

深圳市莉诚科技有限公司

Shenzhen Licheng Technology Co., Ltd.

公司成立于2019年，核心业务以电子元器件（芯片集成电路）代理及现货分销服务为主,与各大原厂，代理商，终端工厂建立长期战略合作关系，使得公司产品线覆盖范围广泛，服务更为全面

The company was established in 2019, with its core business mainly focused on electronic component (chip integrated circuit) agency and spot distribution services.

It has established long-term strategic partnerships with major original factories, agents, and terminal factories, resulting in a wide coverage of the company's product line and more comprehensive services
