    The SC96015 is a highly integrated wireless power
    transmitter IC including a digital microcontroller and a
    power stage. The microcontroller includes a high
    performance 32-bit digital core, rich memory and
    peripherals. The power stage includes a full-bridge
    inverter, current sense amplifier, communication
    demodulator, linear regulator and protection circuit.
    The SC96015 integrates DP/DM and CC fast charge
    interface. To flexibly implement a QI Tx system, the
    SC96015 can request a high voltage from the adapter
    through CC1/CC2 or DP/DM interface. The SC96015
    supports foreign object detection (FOD) by
    continuously monitoring the input voltage and input DC
    current. Besides, the SC96015 also supports input
    under-voltage lockout (UVLO), over-current protection
    (OCP) and over-temperature protection (OTP). These
    protections further enhance the reliability of the total
    wireless power transmitter system.

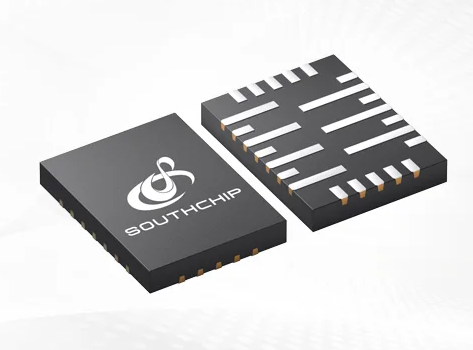

    The SC96015 is available in a compact 4 x 3 mm
    FCQFN package.

    • 0.00
      0.00
商品描述

The SC96015 is a highly integrated wireless power
transmitter IC including a digital microcontroller and a
power stage. The microcontroller includes a high
performance 32-bit digital core, rich memory and
peripherals. The power stage includes a full-bridge
inverter, current sense amplifier, communication
demodulator, linear regulator and protection circuit.
The SC96015 integrates DP/DM and CC fast charge
interface. To flexibly implement a QI Tx system, the
SC96015 can request a high voltage from the adapter
through CC1/CC2 or DP/DM interface. The SC96015
supports foreign object detection (FOD) by
continuously monitoring the input voltage and input DC
current. Besides, the SC96015 also supports input
under-voltage lockout (UVLO), over-current protection
(OCP) and over-temperature protection (OTP). These
protections further enhance the reliability of the total
wireless power transmitter system.
The SC96015 is available in a compact 4 x 3 mm
FCQFN package.

• Support WPC2.0 15W fast charging • 3.0V to 20V AVIN input voltage range • 2.0V to 18V PVIN input voltage range • Integrated low RDSON power FETs 16mR Type • Integrated accurate current sense for FOD • Integrated 32-bit Core/32K MTP /6K SRAM • Voltage and current demodulation • Deep low power mode Q detection • Support DP/DM fast charger, USB Power Delivery • UVLO/OVP/OCP/OTP
