SC2006Q is a dual-C Port Type-C/PD fast charge
controller. It complies with the most popular high voltage
fast charge protocols with CC & DPDM interface. It targets
for the powerbank, car charger and electronic tools
applications.
SC2006Q minimizes external components by integrating
USB PD baseband PHY, Type-C detection, VBUS
discharging path, VCONN supply, DPDM fast charge
protocol PHY, voltage and current sense, 11-bit high
performance ADC, two (10+1) bit VDAC, NMOS gate driver,
I2C interface and protection circuits. It embedded 32-bit
high performance micro-controller with 128K-Byte
flash(another 16kB for ECC), and 8K-Byte SRAM, which
provides cost effective solutions to many applications.
SC2006Q supports various protection mechanisms
including over voltage protection, under voltage protection,
over current protection, short circuit protection, over
temperature protection, DPDM over voltage protection, CC
over voltage protection, VCONN over voltage, over current
and short protection, so to effectively ensure stable and
reliable operation of system..
Fast Charge Protocol Interface
Fast Charge Protocol Interface
Two pairs of independent CC pins and one pair of
reused CC pins for Type-C and PD usage,
supporting Vconn supply
Two pairs of independent DPDM pins and one
pair of reused DPDM pins for USB fast charge
usage, including BC1.2 , UFCS and various
proprietary protocols
Power and Analog Blocks
30V operating voltage range, supporting PD3.2
EPR 28V application.
Integrated two VBUS discharging paths
Integrated high-side current sense amplifier and
11-bit ADC
Integrated three N-MOS driver blocks
Integrated three IN_DET blocks
Built-in protections: OVP, OCP, SCP, UVP, OTP,
CC OVP, DPDM OVP
MCU Subsystem
32bit ARM Cortex-M0 Core
12 MHz CPU frequency
128kB flash (another 16kB for ECC)
8 kB SRAM
Master/Slave I2C interface and UART TX/RX
interface
SWD debug supporting
48MHz PWM output supporting
- Package

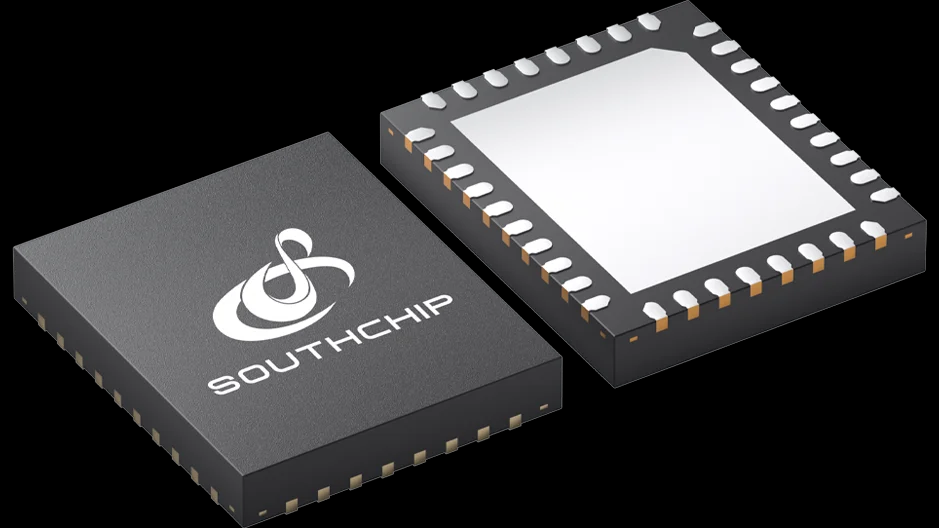

QFN-44(5*5), 5.0mm x 5.0mm x 0.75mm
Two pairs of independent CC pins and one pair of
reused CC pins for Type-C and PD usage,
supporting Vconn supply
Two pairs of independent DPDM pins and one
pair of reused DPDM pins for USB fast charge
usage, including BC1.2 , UFCS and various
proprietary protocols
Power and Analog Blocks
30V operating voltage range, supporting PD3.2
EPR 28V application.Fast Charge Protocol Interface
Two pairs of independent CC pins and one pair of
reused CC pins for Type-C and PD usage,
supporting Vconn supply
Two pairs of independent DPDM pins and one
pair of reused DPDM pins for USB fast charge
usage, including BC1.2 , UFCS and various
proprietary protocols
Power and Analog Blocks
30V operating voltage range, supporting PD3.2
EPR 28V application.
Integrated two VBUS discharging paths
Integrated high-side current sense amplifier and
11-bit ADC
Integrated three N-MOS driver blocks
Integrated three IN_DET blocks
Built-in protections: OVP, OCP, SCP, UVP, OTP,
CC OVP, DPDM OVP
MCU Subsystem
32bit ARM Cortex-M0 Core
12 MHz CPU frequency
128kB flash (another 16kB for ECC)
8 kB SRAM
Master/Slave I2C interface and UART TX/RX
interface
SWD debug supporting
48MHz PWM output supporting
- Package
QFN-44(5*5), 5.0mm x 5.0mm x 0.75mmIntegrated two VBUS discharging paths
Integrated high-side current sense amplifier and
11-bit ADC
Integrated three N-MOS driver blocks
Integrated three IN_DET blocks
Built-in protections: OVP, OCP, SCP, UVP, OTP,
CC OVP, DPDM OVP
MCU Subsystem
32bit ARM Cortex-M0 Core
12 MHz CPU frequency
128kB flash (another 16kB for ECC)
8 kB SRAM
Master/Slave I2C interface and UART TX/RX
interface
SWD debug supporting
48MHz PWM output supporting
- Package
QFN-44(5*5), 5.0mm x 5.0mm x 0.75mm
