    Descriptions
    The SC81A10/E is a non-synchronous buck converter
    featuring a wide input voltage range of 6V to 100V, and is
    specifically optimized for applications demanding ultra-low
    standby power consumption. The converter can achieve
    high efficiency and can support up to 1.2A continuous load
    current with integrated Low RON high-side power
    MOSFETs. The SC81A10 integrates a PG pin to indicate
    whether the output is within the target range, while for the
    SC81A10E, the PG pin is replaced by an EXT pin instead.
    The SC81A10E can achieve much lower standby loss and
    higher light-load efficiency via the EXT tied to VOUT.
    The device employs a constant on-time control mode which
    enables a fast transient response. It is compatible with low
    equivalent series resistance output capacitors such as
    polymer and ceramic (MLCC) capacitors with external
    compensation circuits.
    The IC incorporates an internal VCC bias supply, which
    helps to eliminate the need for an external VCC capacitor
    and simplifies PCB layout.
    The device supports protections including input undervoltage
    protection, cycle-by-cycle peak current limitation,
    short circuit protection with hiccup mode, and thermal
    shutdown protection with auto-recovery

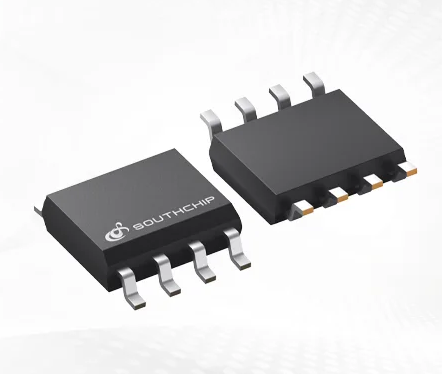

    SC81A10/E adopts SOP8 Package

    • 0.00
      0.00
商品描述

Descriptions
The SC81A10/E is a non-synchronous buck converter
featuring a wide input voltage range of 6V to 100V, and is
specifically optimized for applications demanding ultra-low
standby power consumption. The converter can achieve
high efficiency and can support up to 1.2A continuous load
current with integrated Low RON high-side power
MOSFETs. The SC81A10 integrates a PG pin to indicate
whether the output is within the target range, while for the
SC81A10E, the PG pin is replaced by an EXT pin instead.
The SC81A10E can achieve much lower standby loss and
higher light-load efficiency via the EXT tied to VOUT.
The device employs a constant on-time control mode which
enables a fast transient response. It is compatible with low
equivalent series resistance output capacitors such as
polymer and ceramic (MLCC) capacitors with external
compensation circuits.
The IC incorporates an internal VCC bias supply, which
helps to eliminate the need for an external VCC capacitor
and simplifies PCB layout.
The device supports protections including input undervoltage
protection, cycle-by-cycle peak current limitation,
short circuit protection with hiccup mode, and thermal
shutdown protection with auto-recovery
SC81A10/E adopts SOP8 Package

Features • Wide VIN Range: 6V to 100V • 10μA Ultra Low Quiescent Current - For SC81A10E: 4μA (The EXT pin is tied to VOUT) • Up to 1.2A Continuous Output Current • Integrated 200mΩ MOSFET • 1.2V Reference with ±1% Accuracy • COT Mode for Fast Load Transient • Switching Frequency Adjustable 80KHz~1MHz • No External VCC Capacitor is Needed • Low Dropout Mode with DMAX>98% • Power Good Indicator for SC81A10 • Programmable UVLO By EN pin • Internal Soft Start • Cycle by Cycle High Side Peak Current Limit • UVP with Hiccup Mode • ULVO, TSD Protection (Non-Latch) • SOP8 Package Available
