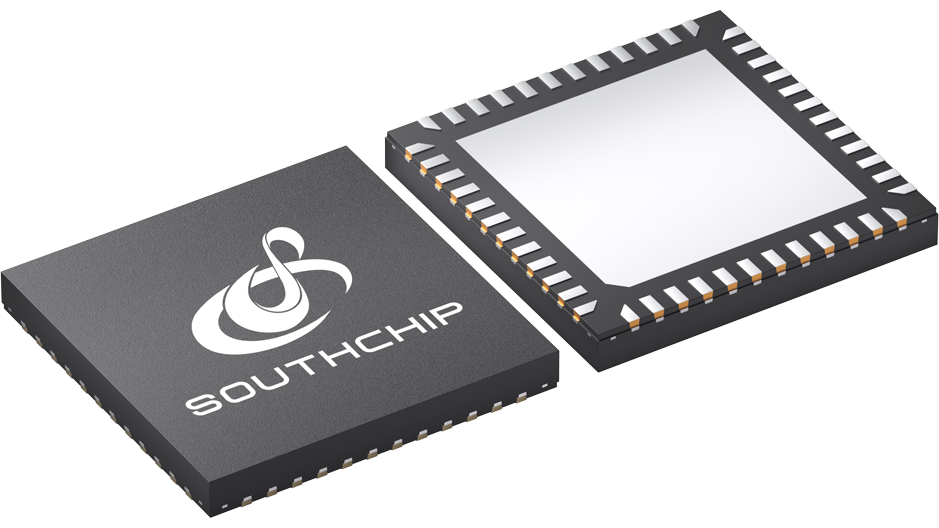

  • SC77708QQDAR

  • SC77708QQDAR

    多路 MOSFET 驱动器集成电路

    SC77708Q 是一款多 MOSFET 驱动器 IC，专用于控制多达 16 个 N 沟道 MOSFET。它包括 8 个半桥，用于直流电机控制应用，如汽车电动座椅控制或其他应用。24 位串行外设接口 (SPI) 用于配置 SC77708Q 和控制半桥。它还允许读出状态寄存器以进行诊断。SC77708Q 具有多种诊断功能，如监测电源电压、电荷泵电压、温度警告和过温关断。每个栅极驱动器都能独立监控其外部 MOSFET 漏极-源极电压的故障情况。该器件采用 VQFN-48 封装，带有支持引线端头检查的裸露焊盘。该封装具有良好的散热性能，并最大限度地减少了所需的 PCB 空间


    • 0.00
      0.00
商品描述

多路 MOSFET 驱动器集成电路

SC77708Q 是一款多 MOSFET 驱动器 IC，专用于控制多达 16 个 N 沟道 MOSFET。它包括 8 个半桥，用于直流电机控制应用，如汽车电动座椅控制或其他应用。24 位串行外设接口 (SPI) 用于配置 SC77708Q 和控制半桥。它还允许读出状态寄存器以进行诊断。SC77708Q 具有多种诊断功能，如监测电源电压、电荷泵电压、温度警告和过温关断。每个栅极驱动器都能独立监控其外部 MOSFET 漏极-源极电压的故障情况。该器件采用 VQFN-48 封装，带有支持引线端头检查的裸露焊盘。该封装具有良好的散热性能，并最大限度地减少了所需的 PCB 空间


 Descriptions The

SC77708Q is a Multi-MOSFET driver IC dedicated to control up to 16 N-channel MOSFETs. It includes 8 half-bridges for DC motor control applications such as automotive power seat control or other applications. A 24-bit Serial Peripheral Interface (SPI) is used to configure the SC77708Q and to control the half bridges. It also allows the read out of the status registers for diagnostic purpose. The SC77708Q offers a wide range of diagnostic features such as the monitoring of the supply voltage, the charge pump voltage, temperature warning and over-temperature shutdown. Each gate driver monitors independently its external MOSFET drain-source voltage for fault conditions. The device is housed in a VQFN-48 with exposed pad supporting lead tip inspection. The package provides a good thermal performance and minimizes the required PCB space.

2 Applications • Seat control and extended functions (steering column adjustment, gas pedal adjustment) • Power lift gate • Central door lock • Body control module (cargo cover, washer pump, window lift, rear wiper ...)

3 Features • 8 Half-Bridge (HB) gate drivers for external Nchannel MOSFETs • Control of reverse battery protection MOSFET • Adaptive MOSFET gate control – Improved electromagnetic emission – Reduced switching losses in PWM mode • 24-bit Serial Peripheral Interface • Two current sense amplifiers with configurable gain – High-side and low-side capable for protection and diagnosis • Drain-source monitoring for short circuit detection • Overtemperature warning and shutdown • Timeout watchdog • Detailed off-state diagnostic (open load, short circuit to battery or short circuit to GND) via SPI • Three PWM inputs – High-side and low-side PWM capable – Active free-wheeling – Up to 25 kHz PWM frequency • Low current consumption in sleep mode • Configurable low-side 1-8 brake with short circuit detection in sleep mode and normal mode • Configurable VS overvoltage detection in sleep mode • Leadless power package with support of optical lead tip inspection • Green Product (RoHS compliant) • AEC Qualified (Grade 1)

4 Device Information

ORDER NUMBER PACKAGE BODY SIZE SC77708QQDAR 48 pin QFN 7mm x 7mm x 0.9mm
