  • SC81480Q

  • SC81480Q

    Descriptions
    The SC81480Q is a synchronous Buck converter family with
    a wide input voltage from 3V to 36V. The SC81480Q
    regulates the output voltage at customized voltage by
    setting the divider resistors. It provides up to 8A of highly
    efficient output current with current mode control with fast
    loop response.
    The SC81480Q is specifically designed for automotive
    applications. The device incorporates spread spectrum,
    QFN package, symmetrical pinout to optimize the EMI
    performance. Up to 2.2MHz switching frequency could help
    avoid noise sensitive frequency.
    The SC81480Q employs peak current mode control scheme.
    The switching frequency could be synchronized to an
    external clock.
    The SC81480Q offers output over-voltage protection, cycleby-cycle
    peak current limit, output short circuit protection,
    and thermal shutdown protection.

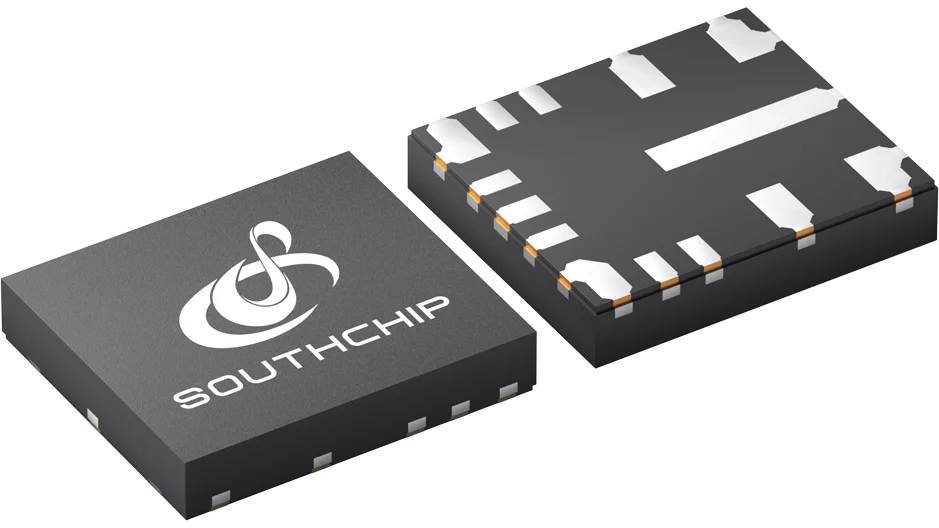

    The SC81480Q is available in 14-pin 4mm X 3.5mm QFN
    package.

    • 0.00
      0.00
商品描述

Descriptions
The SC81480Q is a synchronous Buck converter family with
a wide input voltage from 3V to 36V. The SC81480Q
regulates the output voltage at customized voltage by
setting the divider resistors. It provides up to 8A of highly
efficient output current with current mode control with fast
loop response.
The SC81480Q is specifically designed for automotive
applications. The device incorporates spread spectrum,
QFN package, symmetrical pinout to optimize the EMI
performance. Up to 2.2MHz switching frequency could help
avoid noise sensitive frequency.
The SC81480Q employs peak current mode control scheme.
The switching frequency could be synchronized to an
external clock.
The SC81480Q offers output over-voltage protection, cycleby-cycle
peak current limit, output short circuit protection,
and thermal shutdown protection.
The SC81480Q is available in 14-pin 4mm X 3.5mm QFN
package.

Features • AEC-Q100 qualified for automotive applications: o Temperature grade 1: TA range: -40°C to 125 °C • 3.5V to 36V start up input voltage, support 3.0V falling VIN • 2.5µA sleep mode quiescent current • 200kHz to 2200kHz adjustable frequency, synchronized to external clock • Adjustable output voltage through FB pin • Frequency spread spectrum for low EMI • Symmetric VIN pinout for low EMI • Selectable option for PFM or FPWM mode • Output OCL / SCP / OVP / TSD protection • Pin-to-Pin compatible with o SC81440Q (Automotive, 36V/4A, adjustable FSW) o SC81460Q (Automotive, 36V/6A, adjustable FSW) o SC81440 (Industrial, 36V/4A, adjustable FSW) o SC81460 (Industrial, 36V/6A, adjustable FSW) o SC81480 (Industrial, 36V/8A, adjustable FSW)
