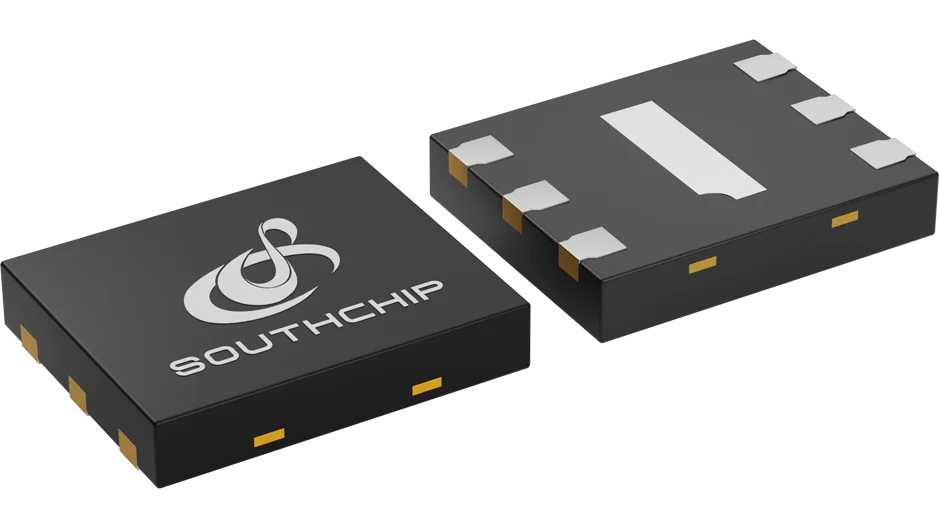

  • SC5617A24DDFR

  • SC5617A24DDFR

    SC5617A series are single cell Li-ion battery primary

    protection IC. It monitors the battery voltage and current,

    provide accurate protection and recovery threshold and

    control the external CHG and DSG FET to provide full array

    protection.

    The current is monitored via the voltage across the external

    sense resistor. For better system thermal performance,

    SC5617A could enable the use of low sense resistor to

    reduce the power dissipations.

    cross the external

    sense resistor. For better system thermal performance,
    SC5617A could enable the use of low sense resistor to
    r

    • 0.00
      0.00
商品描述

SC5617A series are single cell Li-ion battery primary

protection IC. It monitors the battery voltage and current,

provide accurate protection and recovery threshold and

control the external CHG and DSG FET to provide full array

protection.

The current is monitored via the voltage across the external

sense resistor. For better system thermal performance,

SC5617A could enable the use of low sense resistor to

reduce the power dissipations.

cross the external

sense resistor. For better system thermal performance,
SC5617A could enable the use of low sense resistor to
r

Features

• Voltage Protection

– Over charge voltage protection 4.66V

– Over discharge voltage protection 2.1V

• Current Protection

– Charging overcurrent detection voltage -18mV

– Discharging overcurrent detection voltage 1

12.5mV

– Load short detection voltage protection 26.25mV

• Accurate delay circuit

• Support small sense resistor

• Low Current consumption

• Additional feature

– Selectable 0V-battery charging: inhibit

– Selectable OV Latch feature: disable

– Selectable UV Latch feature: disable

– Selectable DOC Latch feature: disable

• Thin package

– Height 0.4mm (MAX)
