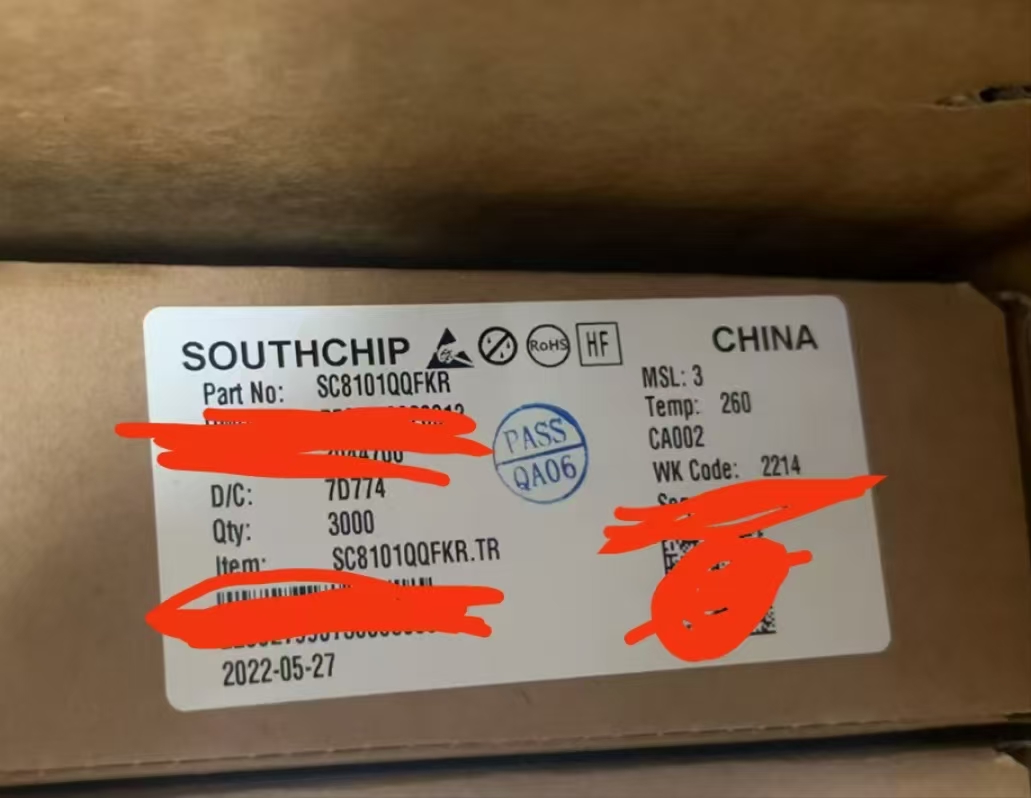

  • SC8101QQFKR

  • SC8101QQFKR

    SC8101Q is a synchronous buck converter with a
    wide input voltage from 4.4V to 32V. The SC8101Q
    regulates the output voltage at a fixed 5.1V or
    customized voltage by setting the divider resistor. It
    also provides high accurate output current limit. The
    converter enters Constant Current (CC) Mode in
    case the output reaches the setting current limit. The
    total output power can be programmed by a resistor,
    which makes it easy for constant power (CP) control.
    SC8101Q integrates 45mΩ high side NMOS and
    30mΩ low side NMOS to achieve high efficiency.
    Besides, it provides low side gate driver (LSD) to
    drive external NMOS and works with build-in NMOS.
    SC8101Q adopts programmable line drop
    compensation, programmable frequency setting with
    minimum external components, maximum functions
    can be achieved for user’s different applications.
    SC8101Q also supports full protections including
    under voltage protection, over voltage protection,
    short current protection and auto-restart, over
    temperature protection.
    SC8101Q adopts 19 pin QFN 3x3 package

    • 0.00
      0.00
商品描述

SC8101Q is a synchronous buck converter with a
wide input voltage from 4.4V to 32V. The SC8101Q
regulates the output voltage at a fixed 5.1V or
customized voltage by setting the divider resistor. It
also provides high accurate output current limit. The
converter enters Constant Current (CC) Mode in
case the output reaches the setting current limit. The
total output power can be programmed by a resistor,
which makes it easy for constant power (CP) control.
SC8101Q integrates 45mΩ high side NMOS and
30mΩ low side NMOS to achieve high efficiency.
Besides, it provides low side gate driver (LSD) to
drive external NMOS and works with build-in NMOS.
SC8101Q adopts programmable line drop
compensation, programmable frequency setting with
minimum external components, maximum functions
can be achieved for user’s different applications.
SC8101Q also supports full protections including
under voltage protection, over voltage protection,
short current protection and auto-restart, over
temperature protection.
SC8101Q adopts 19 pin QFN 3x3 package

• AEC-Q100 qualified for automotive applications: - Temperature grade 1: TA range: -40°C to +125°C • Wide input operating voltage from 4.4V to 32V • Max output capacity 5V/5A with internal MOSFETs • External low side NMOS gate driver • Almost 100% duty cycle operation • Ultra-low quiescent current • ±2% output voltage reference accuracy • ±4.5% output current limit accuracy • Programmable output power limit • Programmable line drop compensation • PFM mode • Fixed-150kHz switching frequency or adjustable by external resistor • Hiccup and auto-restart • Full protection of UVLO, IN/OUT-OVP, OCP, OTP • Available in QFN-19 3x3 Package
