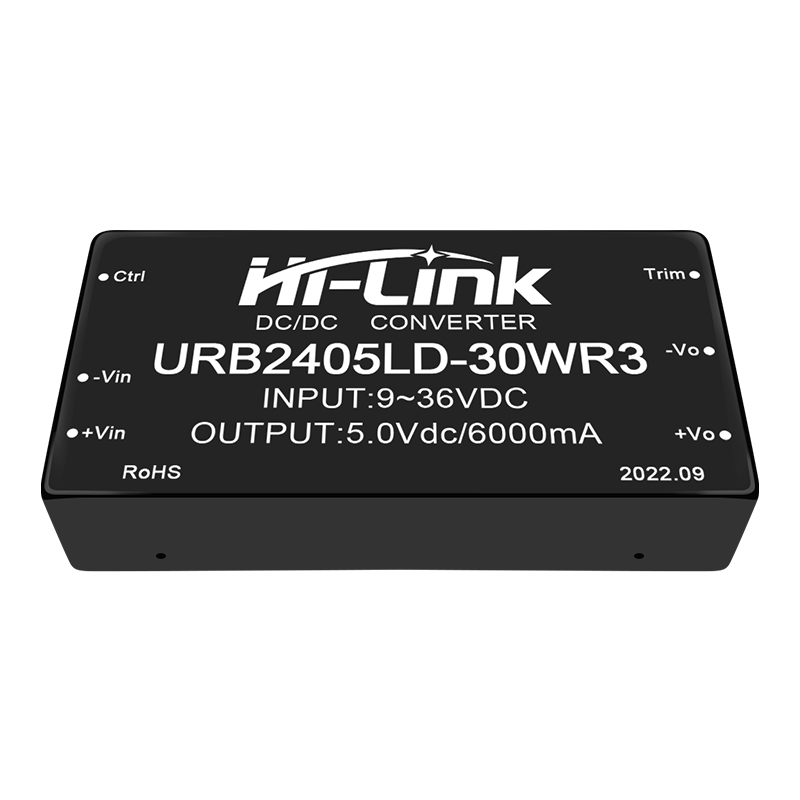

  • DC/DC Power Modules | HLK-UR(A)B LD-30WR3

  • DC/DC Power Modules | HLK-UR(A)B LD-30WR3

    Brief introduction:

    UR(A)B_LD-30WR3 series products have an output power of 30W, a wide voltage input range of 4:1, an efficiency of up to 91%, a conventional isolation voltage of 1500VDC, allow a working temperature of -40°C to 85°°C, with input undervoltage protection, output over-voltage, over-current, short-circuit protection functions, bare metal meets CISPR32/EN55032CLASSA, and is widely used in medical, industrial control, electric power, instrumentation, communication, railway and other fields. ...

    • 0.00
      0.00
商品描述

Brief introduction:

UR(A)B_LD-30WR3 series products have an output power of 30W, a wide voltage input range of 4:1, an efficiency of up to 91%, a conventional isolation voltage of 1500VDC, allow a working temperature of -40°C to 85°°C, with input undervoltage protection, output over-voltage, over-current, short-circuit protection functions, bare metal meets CISPR32/EN55032CLASSA, and is widely used in medical, industrial control, electric power, instrumentation, communication, railway and other fields. ...

Peculiarity:

Ultra-wide range input (4:1) with 30W output

Conversion Efficiency 91% (TyP.)

Isolation voltage 1500Vdc

Ultra-low standby power consumption: 0.036W (typical)

Ultra-Fast Boot: 1ms (typical)

Operating temperature range: -40°C~ 85°C input undervoltage protection, output short circuit, over-current, over-voltage protection

Metal housing with low output ripple

International standard pins, PCB board in-line mounting
