    Brief introduction:

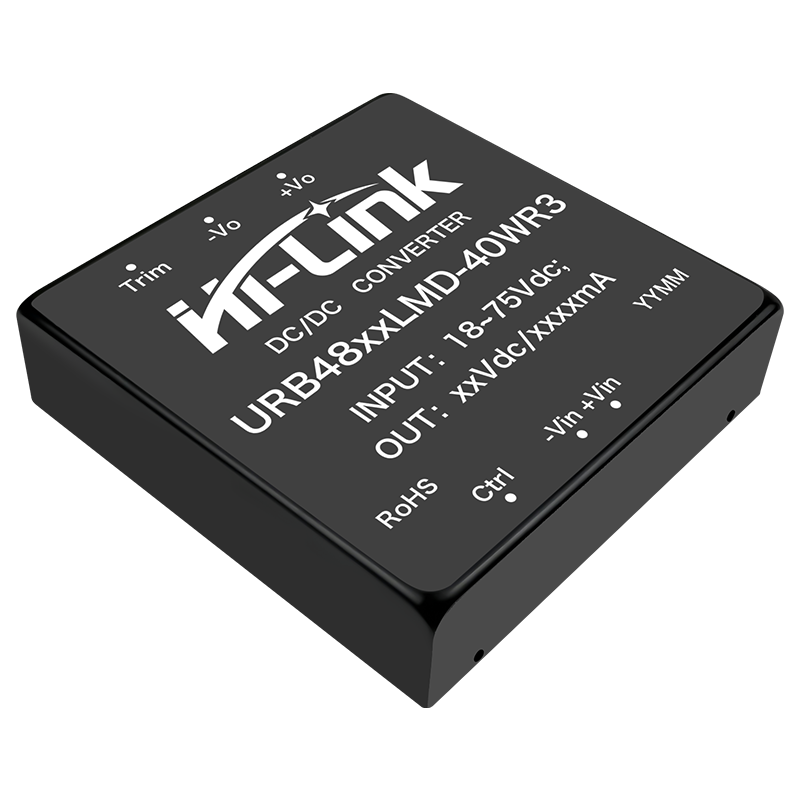

    UR(A)B_LMD-40WR3 series products have an output power of 40W, a wide voltage input range of 4:1, an efficiency of up to 91%, a conventional isolation voltage of 1500VDC, allow working temperature of -40°CCto 85°C, with input undervoltage protection, output overvoltage, overcurrent, short-circuit protection functions, bare metal meets CISPR32/EN55032CLASSA, and is widely used in medical, industrial control, electric power, instrumentation, communications, railways and other fields.

    • 0.00
      0.00
商品描述

Brief introduction:
UR(A)B_LMD-40WR3 series products have an output power of 40W, a wide voltage input range of 4:1, an efficiency of up to 91%, a conventional isolation voltage of 1500VDC, allow working temperature of -40°CCto 85°C, with input undervoltage protection, output overvoltage, overcurrent, short-circuit protection functions, bare metal meets CISPR32/EN55032CLASSA, and is widely used in medical, industrial control, electric power, instrumentation, communications, railways and other fields.

Peculiarity:

Ultra-wide range input (4:1), output

40W Conversion Efficiency 91% (TyP)

Isolation voltage 1500Vdc

Ultra-low standby power consumption of 0.036W (typical)

Ultra-Fast Boot: 1ms (typical)

Operating temperature range: -40°C~ 85°C input undervoltage protection, output short circuit, over-current, over-voltage protection

Metal housing with low output ripple

International standard pins, PCB board in-line mounting
