  • SC96019MFER

  • SC96019MFER

    The SC96019 is a highly integrated wireless power
    transmitter IC including a digital microcontroller and a
    power stage. The microcontroller includes a high
    performance 32-bit digital core, rich memory and
    peripherals. The power stage includes a full-bridge
    inverter, current sense amplifier, communication
    demodulator, linear regulator and multiple protection
    circuit.
    The SC96019 integrates DP/DM and CC fast charge

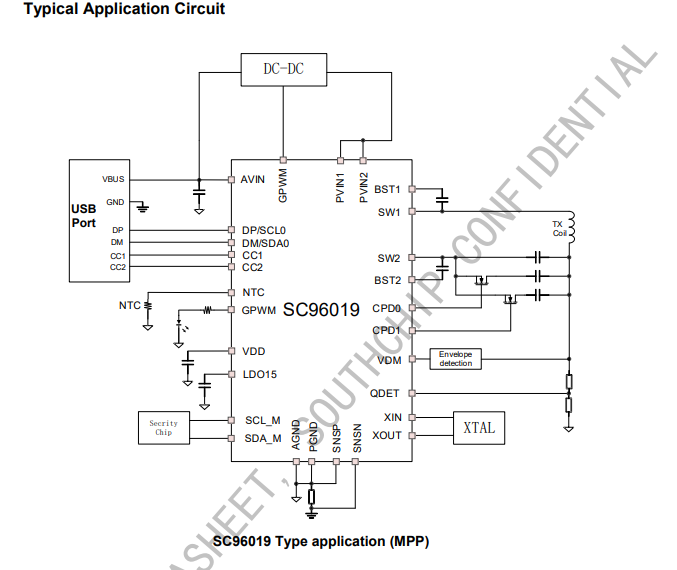

    interface. To implement an MPP transmitter system,
    the SC96019 can request a high voltage from the
    adapter through CC1/CC2 or DP/DM interface. The
    SC96019 supports foreign object detection (FOD) by
    continuously monitoring the input voltage and input DC
    current. Besides, the SC96019 also supports input
    under-voltage lockout (UVLO), over-current protection
    (OCP) and over-temperature protection (OTP). These
    protections further enhance the reliability of the total
    wireless power transmitter system.

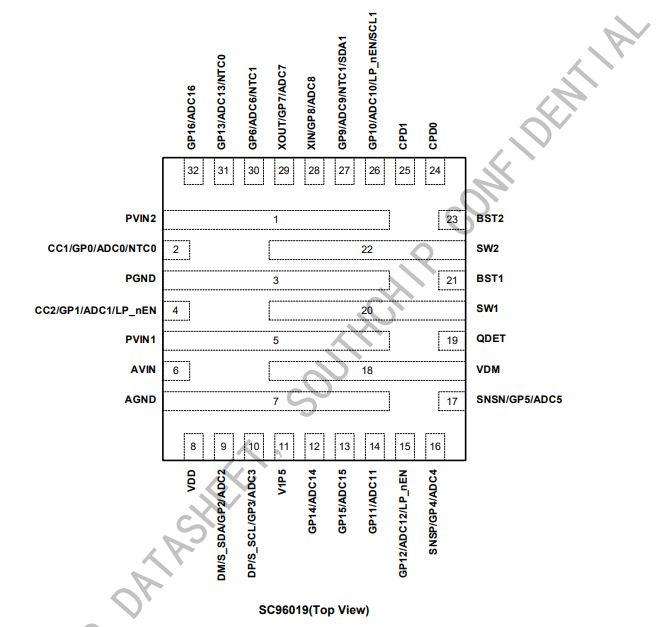

    The SC96019 is available in a compact 4 x 4 mm
    FCQFN package.

    • 0.00
      0.00
商品描述

The SC96019 is a highly integrated wireless power
transmitter IC including a digital microcontroller and a
power stage. The microcontroller includes a high
performance 32-bit digital core, rich memory and
peripherals. The power stage includes a full-bridge
inverter, current sense amplifier, communication
demodulator, linear regulator and multiple protection
circuit.
The SC96019 integrates DP/DM and CC fast charge
interface. To implement an MPP transmitter system,
the SC96019 can request a high voltage from the
adapter through CC1/CC2 or DP/DM interface. The
SC96019 supports foreign object detection (FOD) by
continuously monitoring the input voltage and input DC
current. Besides, the SC96019 also supports input
under-voltage lockout (UVLO), over-current protection
(OCP) and over-temperature protection (OTP). These
protections further enhance the reliability of the total
wireless power transmitter system.
The SC96019 is available in a compact 4 x 4 mm
FCQFN package.

• Support WPC2.2 25W fast charging • 3.0V to 20V AVIN input voltage range • 2.0V to 20V PVIN input voltage range • Integrated low RDSON power FETs 12mR Type • 288Mhz PLL for EPWM module • Integrated 32-bit Core/32K MTP /32K ROM/6K SRAM • Integrated two Resonant Capacitor switching drivers • Voltage and current demodulation • Deep low power mode Q detection about 20uA • Support DP/DM fast charger, USB Power Delivery • UVLO/OVP/OCP/OTP 3 Applications • WPC Compliant Wireless Power Transmitter • Proprietary Wireless Chargers and Transmitter
