    Features

    ●  Input Voltage Range : 2.5V to 5.5V
    ●  Micro-power consumption ideal for battery power applications
    ●  Omnipolar Operation, easy to use as output
    ●  Very high sensitivity hall sensor
    ●  CMOS process technology
    ●  Chopper stabilization amplifier stage
    ●  Magnetic Sensitivity (typical) BOP=±35Gauss, BRP=±32Gauss
    ●  Good RF noise immunity

    ●  No need pull-up resistor

    ●  Small Solution Size

    ●  RoHS & Green Compliant

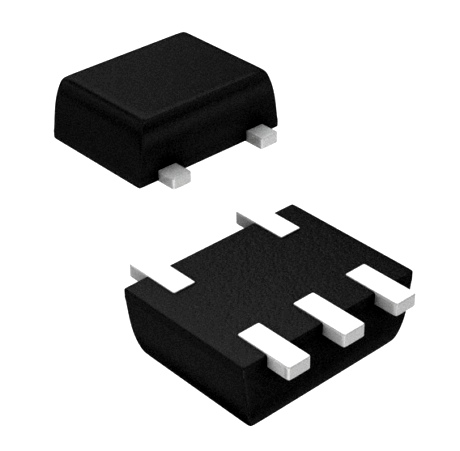

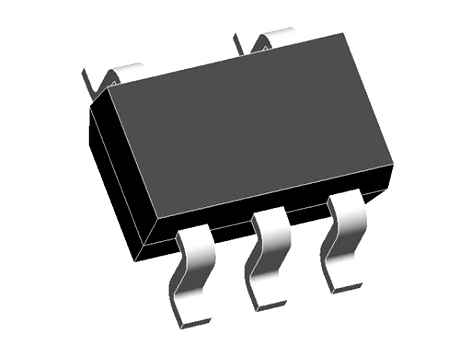

    ●  SOT23-5L & SOT553 Packages

    ●  -40℃ to +125 ℃ Temperature Range


    • 0.00
      0.00
商品描述

Features

●  Input Voltage Range : 2.5V to 5.5V
●  Micro-power consumption ideal for battery power applications
●  Omnipolar Operation, easy to use as output
●  Very high sensitivity hall sensor
●  CMOS process technology
●  Chopper stabilization amplifier stage
●  Magnetic Sensitivity (typical) BOP=±35Gauss, BRP=±32Gauss
●  Good RF noise immunity

●  No need pull-up resistor

●  Small Solution Size

●  RoHS & Green Compliant

●  SOT23-5L & SOT553 Packages

●  -40℃ to +125 ℃ Temperature Range


Applications


●  Smart Meter
●  Cover switch
●  Contact-less switch
