AEC-Q100 Grade 1 qualified

 • Typical of 2.5 μs output response time

 • 5 V supply operation

 • Ultra-low power loss: 100 μΩ internal conductor resistance

 • Reinforced galvanic isolation allows use in economical, high-side current sensing in high-voltage systems

 • 4800 Vrms dielectric strength certified under UL60950-1

• Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques

 • Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high-voltage applications

• Greatly improved total output error through digitally programmed and compensated gain and offset over the full operating temperature range

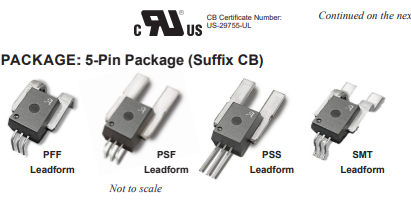

• Small package size, with easy mounting capability

 • Monolithic Hall IC for high reliability

• Output voltage proportional to AC or DC currents

• Factory-trimmed for accuracy

 • Extremely stable output offset voltage
